Our Products

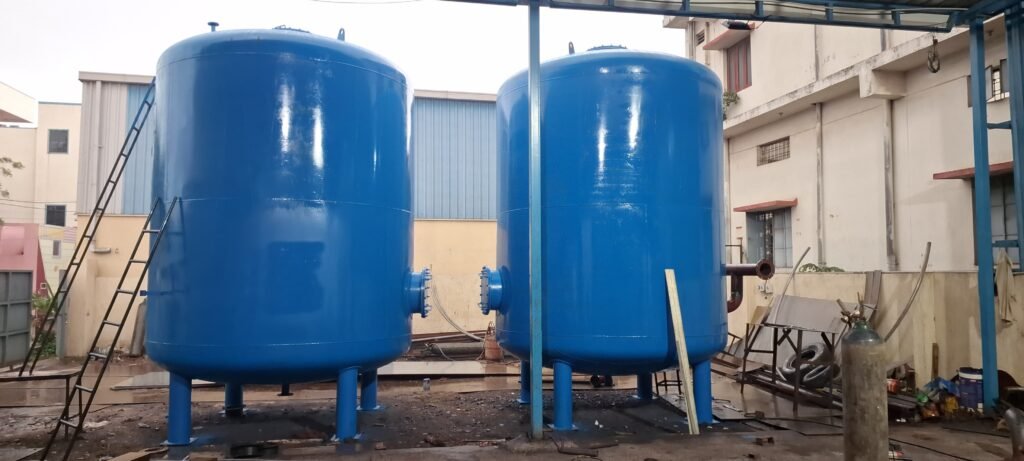

Pressure Vessels
Description: Custom-designed and manufactured to contain gases or liquids at pressures significantly different from the ambient pressure. We build them to the highest safety and quality standards.
Key Specifications:
Design Codes: ASME Sec. VIII Div. 1, IS 2825, PD 5500
Materials: Stainless Steel (304, 316/L), Carbon Steel (IS 2062), Duplex Steel
Types: Pressure Vessels, Separators, Scrubbers, Receivers
Applications: High-pressure reaction, gas storage, distillation, separation processes

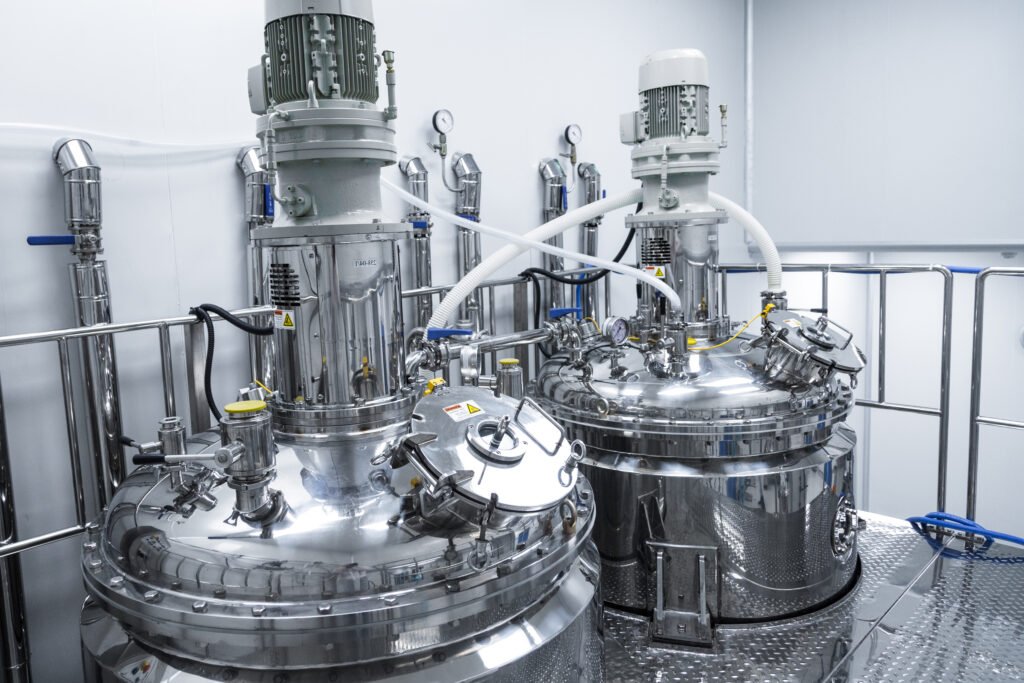

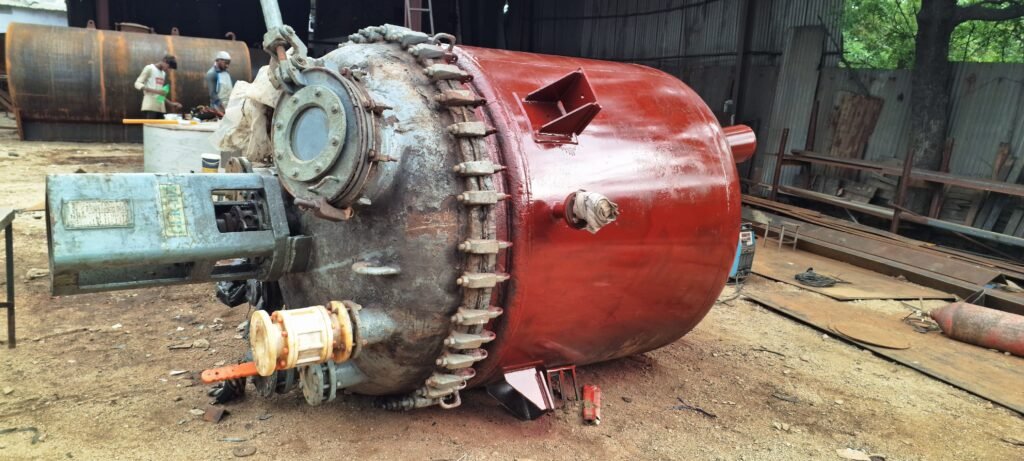

Reactors
Description: Engineered for precise chemical reactions under controlled conditions of temperature, pressure, and agitation. Our reactors are built for durability and easy maintenance.
Key Specifications:
Design Codes: ASME Sec. VIII Div. 1, GMP Guidelines (for Pharma)
Materials: Stainless Steel 304/316/L, Hastelloy, Glass-Lined Steel
Types: Jacketed Reactors, Limpet Coil Reactors, GMP Reactors, Hydrogenators.
Features: Agitation systems (top or side entry), heating/cooling jackets, temperature probes, manholes
Applications: Chemical synthesis, pharmaceutical production, polymerization, hydrogenation

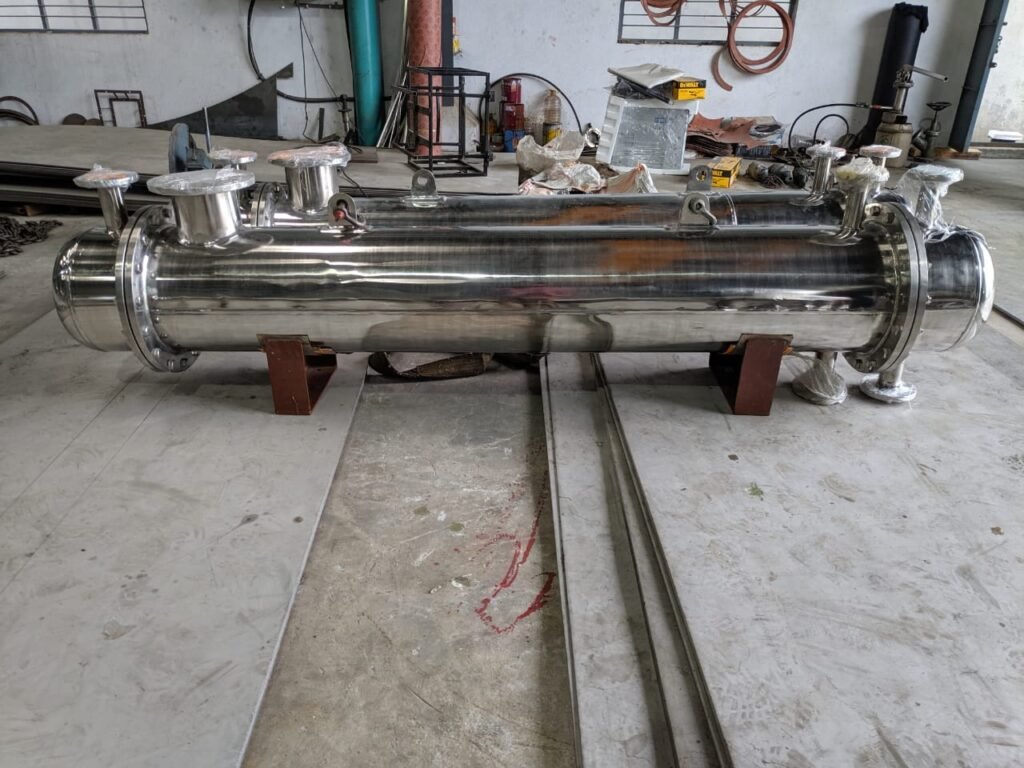

Heat Exchangers
Description: Designed for efficient heat transfer between two fluids without mixing. We build robust exchangers for optimal thermal efficiency and easy servicing.
Key Specifications:
Design Codes: TEMA Standards (R, B, C), ASME Sec. VIII Div. 1
Materials: Shell: SS/CS; Tubes: SS & MS
Types: Shell and Tube (Fixed, Floating, U-Tube), Double Pipe, Box Type
Applications: Cooling, heating, condensation, evaporation in process lines

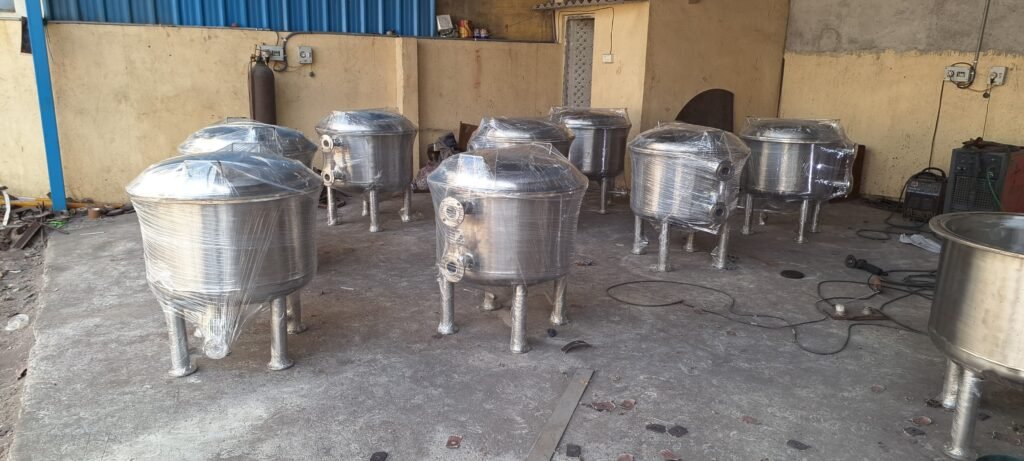

Storage Tanks
Description: Fabricated for the safe and reliable bulk storage of liquids, chemicals, and processed materials. We build tanks for every application and environment.
Key Specifications:
Design Codes: API 650, IS 803 Standards
Materials: Stainless Steel 304/316, Carbon Steel (IS 2062)
Types: Horizontal Storage Tanks, Vertical Storage Tanks, Underground Tanks, BMD Tanks, Mixing Tanks
Applications: Raw material storage, finished product holding, water storage, chemical processing
Filters & Filtration Systems
Description: Robust equipment for efficient solid-liquid separation. Our filters are designed for high throughput, easy cake removal, and cleaning.
Key Specifications:
Types: Pressure Nutche Filters, Leaf Filters, Bag Filters, Strainers
Materials: Stainless Steel 304/316
Applications: Crystallization, purification, catalyst recovery, effluent treatment
Custom-Built & Specialized Equipment
Description: Your process is unique. When standard equipment won’t suffice, our engineering team designs and fabricates bespoke solutions to solve your specific process challenges.
Examples of Custom Fabrication:
Blenders & Mixers: Oxidizer Blenders, Ribbon Blenders
Specialized Tanks: Emulsion Matrix Tanks, Buffer Tanks, CIP Units
Columns: Distillation Columns, Absorption Columns
Piping & Skids: Fabricated pipe spools and integrated process skids
